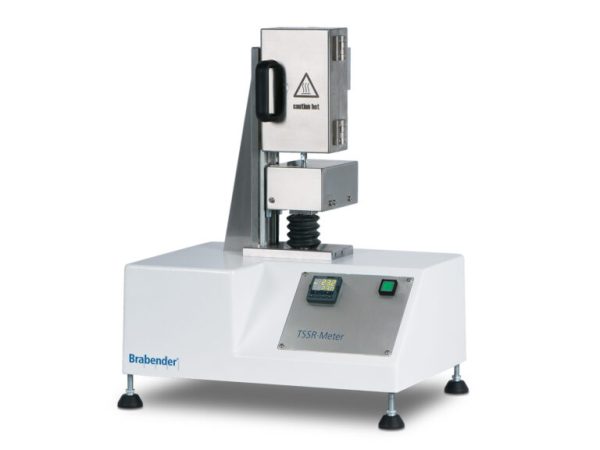

Brabender TSSR-Meter (Measurement of cross-linking density)

The TSSR-Meter can perform conventional isothermal relaxation measurements as well as Temperature Scanning Stress Relaxation (TSSR), an anisothermal stress relaxation measurement method (AISR method).

  • Very good reproducibility
  • Fast determination of the cross-linking density
  • Information about relaxation behaviour and structure

With the ever-increasing demands on materials, the determination of crosslinking density is an important advantage, and therefore the TSSR meter is particularly suitable for material development and quality control during production.

Two different measuring methods are possible with the TSSR meter:

  • the conventional isothermal relaxation measurement
  • the application of the TSSR method

Fields of Application:

  • The determination of the cross-linking density offers advantages in the development of new materials and quality assurance.
  • The compression set value can be predicted from the limit temperature using a linear correlation.
  • Better delimitation of application areas of TPE compared to carbon black filled elastomers
  • Gain additional information for carbon black filled EPDM compounds by anisothermal stress relaxation curves.
  • Represent thermal application limits of commercially available TPE materials and characterize different TPE blends with relaxation spectra.
  • Individual materials can be assigned to product groups using the TSSR index determined.

Additional information

Measuring system

Heating / cooling chamber with electric heating and air cooling

Temperature range 2

20 – 300 °C

Strain

0 100 %

Force load cell

0 – 200 N

Isothermal relaxation time

0 – 1000 h

Test body

Standard rod S2 rod according to DIN 53504
corresponds to test body 5A according to EN ISO 527

AConnections

PC via USB
Compressed air 5 – 6 bar
Power supply

Environmental conditions

Storage temperature – 25 °C to + 55 °C
Operation temperature + 5 °C to + 45 °C

Operation temperature

Operation temperature + 5 °C to + 45 °C

Heating rate

2 x 220 W

Power supply

1 x 230 V, 50/60 Hz, 16 A + N + PE

Dimensions (W x D x H)

490 x 610 x 450 mm

Weight ca.

29 kg
