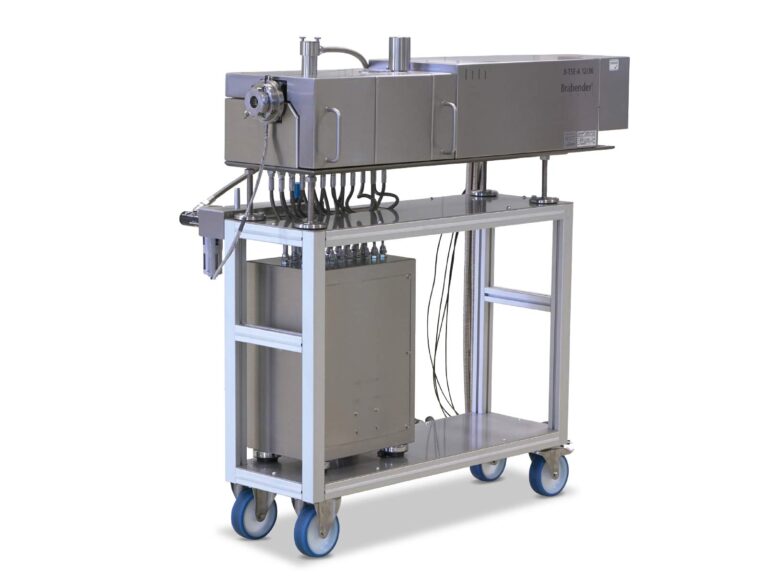

Mini-Compounder B-TSE-A 12/36

With the B-TSE-A 12/36 you develop high-performance materials on a lab scale. The modular concept provides maximum flexibility in the application areas of plastics, rubber, pharmaceuticals, and others. You can process even the smallest sample quantities.

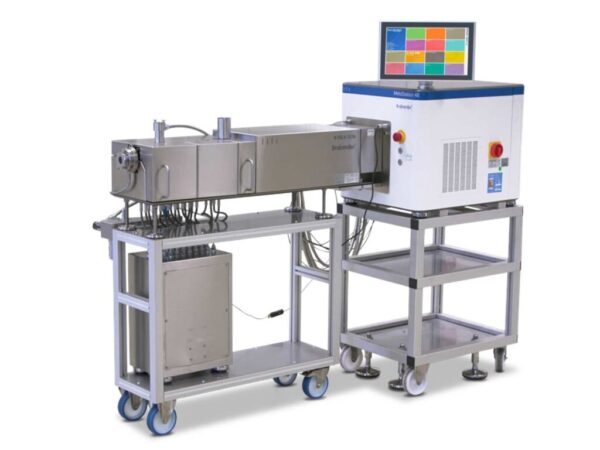

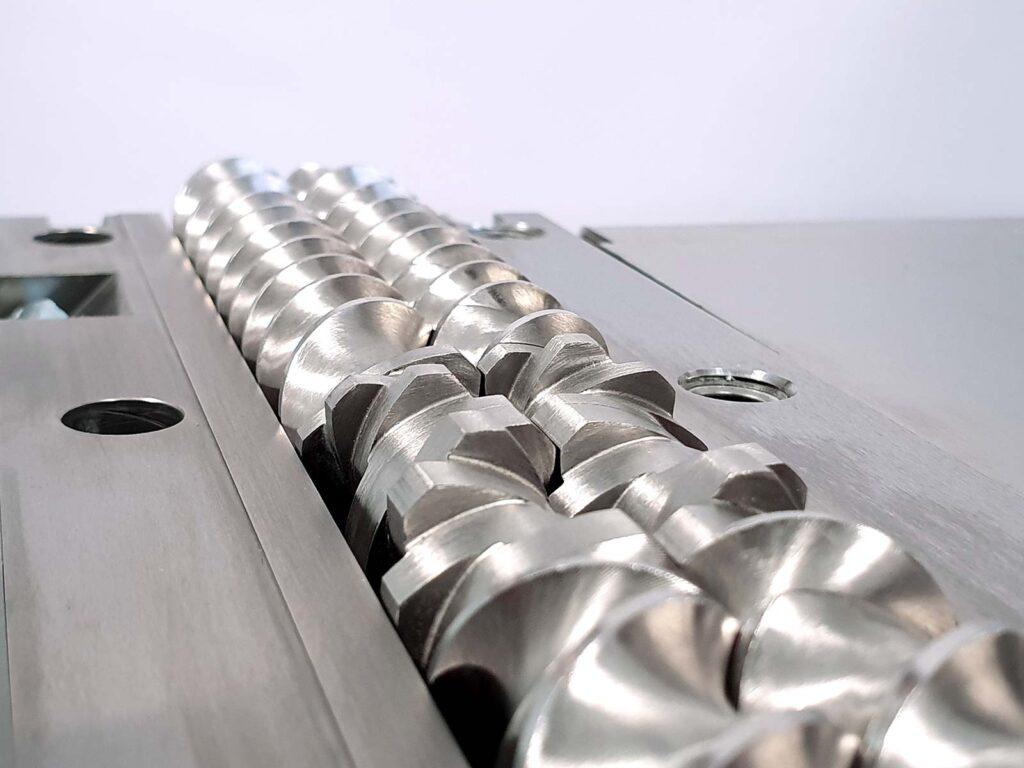

The twin screw attachment with a screw diameter of 12 mm and a barrel length of 36 D is compatible with all MetaStation drive units.

The wide temperature range, high torque density, and multiple loading options offer maximum offer maximum application options in the food, animal feed, plastics, rubber and pharmaceuticals.

Thanks to the performance parameters, the extruder is suitable for developing formulations and processes, as well as for for the production of very small quantities.

Its clam shell design with openable liner enables optimum process monitoring and easy cleaning.

Key Features:

  • High performance
    Benefit from a wide range of applications
  • Flexible
    Process liquids, powders, and pellets with air or liquid cooling
  • Operator friendly
    Thanks to hinged liner and easy-to-clean stainless steel components
  • Modular
    Access a wide range of connectable and interchangeable modules
  • Compact
    The space-saving all-rounder is available as table version or with frame
