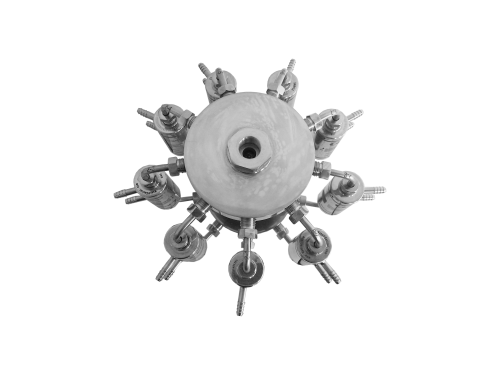

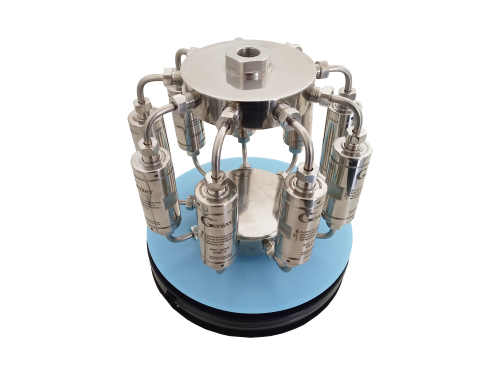

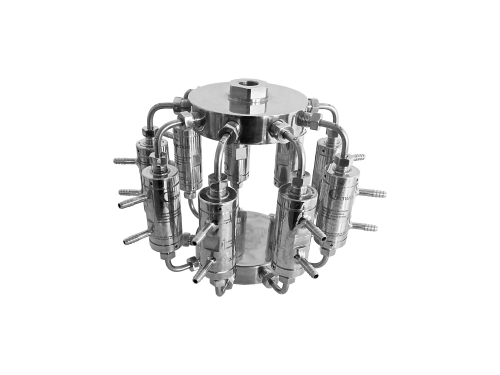

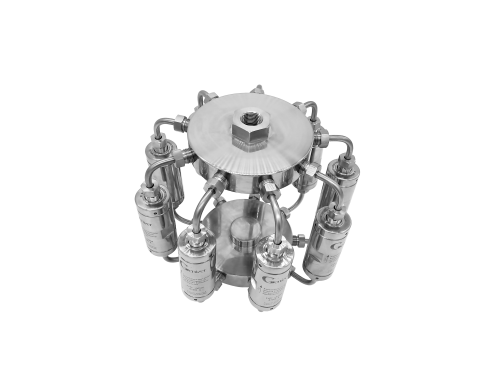

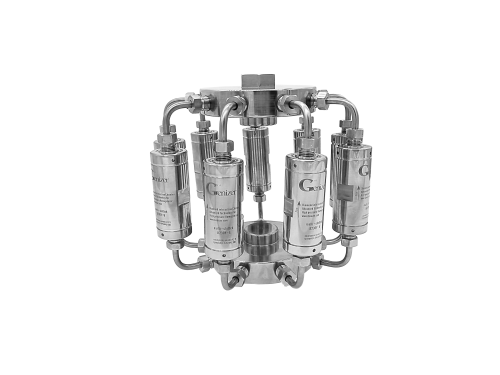

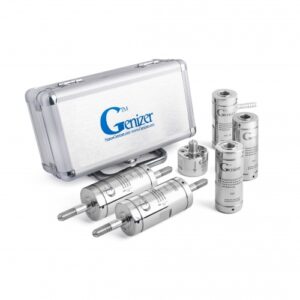

Assembly Diamond Interaction Chamber
Diamond Compatible Interaction Chamber up to 45,000 psi. Warranty: 1 year.
Description:
Diamond Interaction Chamber (DIXC) is used to produce uniform nanoparticles in a high-pressure homogenizer. The fixed geometry within the DIXC is intended to create a uniform processing profile so that all materials will be processed with equal disruptive forces. Single-slotted interaction chambers have a single microchannel and are ideal choices for small batch research, while the multi-slotted interaction chamber comprises multiple microchannels in parallel, which can be used at industrial scales, by increasing the flow rate through the DIXC but with equal processing forces.
Application:
Nanoemulsion, cell disruption, nanodispersion, deagglomeration, liposome
Performance:
Full replacement for the chamber of Microfluidizer processors
Electro-polishing and inner passivation for pharmaceutical applications
Real-time cooling option to reduce oversized particles
Lower cost and higher quality
Electro-polishing and inner passivation for pharmaceutical applications
Real-time cooling option to reduce oversized particles
Lower cost and higher quality
Specifications
| Description | Diamond interaction chamber single-slotted, multi-slotted | ||
| Brand | Genizer with high quality | ||
| Compatibility for Microfluidizer and Avestin EmulsiFlexs | Single-slotted: M-110Y, M-110P, M-110L, M-110S and M-110EH static homogenizing valve (Avestin) Multi-slotted: M-7115, M-7125, M-7250, M210, M610 |
||
| Dimensions W × D × H |
35mm × 35mm × 85mm (single-slotted) 45mm × 45mm × 200mm (multi-slotted) 95mm × 95mm × 300mm (9/16″ F→9/16″ M multi-slotted) |
||
| Weight | 1 lbs. (0.5kg) (single-slotted) 3 lbs. (1.5kg) (multi-slotted) 15 lbs. (7.0kg) (M610) |
||
| Cleaning | Flush to clean | ||
| Sterilization | Whole unit autoclavable | ||
| Pressure Range | 20,000 psi; 30,000 psi; 45,000 psi | ||
| Chamber Type Available | Single-slotted: F12Y, F20Y and static homogenizing valve Multi-slotted: F12Y-4, F12Y-5, F12Y-6, F12Y-7, F20Y-2, F20Y-4, F20Y-6, F20Y-7, F20Y-12, F20Y-13, F20-Y-17 |
||
Features
| Chamber Type | Y-type diamond interaction chamber: F12Y, F20Y, N40Y, J30Y, J20Y for M210, F20Y-12, F20Y-13, F20-Y-14 for M610 |
||
| Max. Pressure | 30,000 psi | ||
| Product Material | 316L stainless steel, diamond | ||
| Polishing Condition | Electro-polish and passivation for pharmaceuticals | ||
| Warranty | 1 year against any manufacturing defects | ||
| Option Features | |||

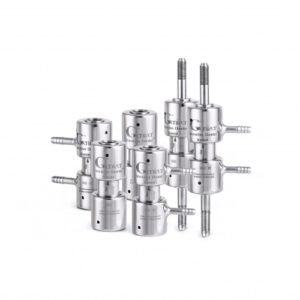

| Chamber Type | Z-type diamond interaction chamber: H10Z, G10Z, H30Z, H210Z, H230Z, Q50Z, T50Z, T60Z, APM diamond auxiliary processing modules (APM) |
||
| Customer Made | Customized laser mark, dimensions and fittings | ||
| Max. Pressure | 45,000 psi | ||
| Product Material | Titanium (resistant to strong acid and base) | ||
| Product Cooling | Real time cooling on chamber | ||
How to Use
1) Keep 2-3 turns of thread be visible on the end of the tubing
2) For maximizing the stability of the nanosize or bioactivity, please select RT chambers
 |
 |
FAQs and Tips
Is this compatible with Microfluidizer?
All the chambers are compatible with any type of Microfluidizer.
What is the material of the chambers?
All chambers are diamond interaction chambers instead of ceramic.
What if the chambers are blocking?
By flow reversing the chamber, the blocking can be resolved. In addition, Genizer’s high-pressure homogenizers have a unique anti-blocking system that can minimize most of the blocking of the chambers.
