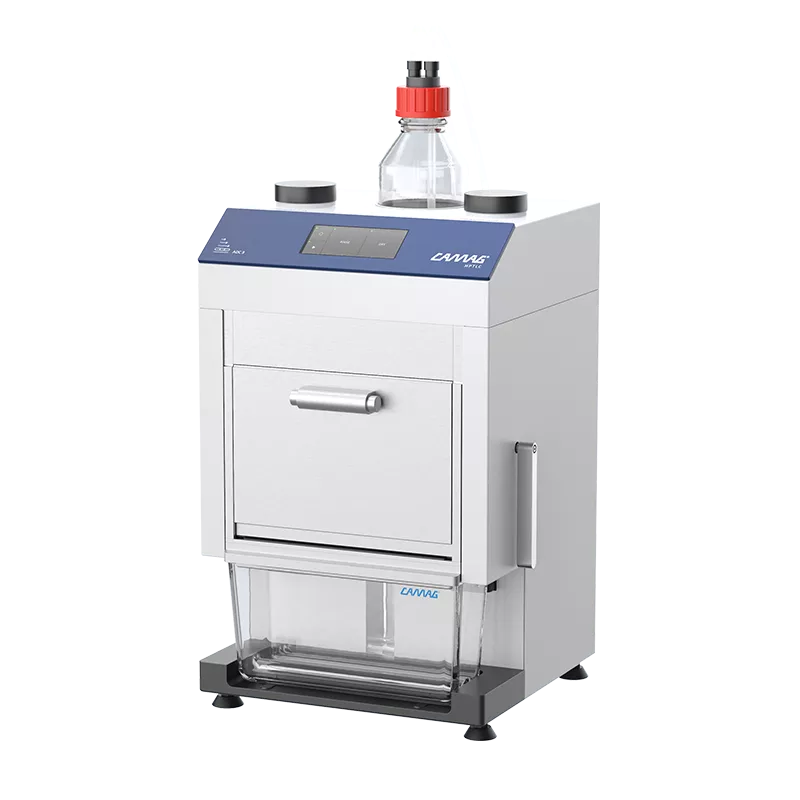

Automatic Developing Chamber 2 (ADC 2)

ADC 2 is a device for reproducible plate development. It performs the development step fully automated, and independent of environmental effects. The activity and pre-conditioning of the layer, chamber saturation, developing distance and final drying can be preset and automatically monitored by the ADC 2.

Two modes of operation are possible: stand-alone with the input of parameters via the keypad, or remote operation from visionCATS with process monitoring, documentation of operating parameters, and reporting.

With visionCATS the ADC 2 can be IQ/OQ qualified and used in a cGMP environment. Operated with the mentioned software, the ADC 2 supports compliance with 21 CFR Part 11.

Key Features:

  • Fully automated development
  • Development in 20 x 10 cm Twin Trough Chamber
  • HPTLC plates (20 x 10 cm)
  • Operation in stand-alone mode or software-controlled
  • Fully traceable operation
  • Option “Humidity Control” allows reproducible chromatography

Technical Specifications

Electrical Connections: 100–240 V AC 50/60Hz, 20W

Dimensions (W x D x H): 330 x 330 x 520 mm

Weight: 18.5 kg
