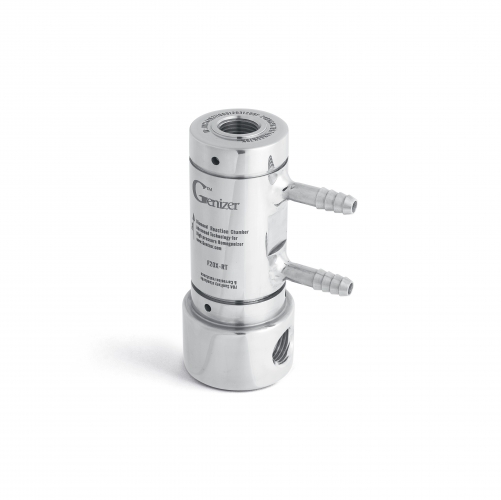

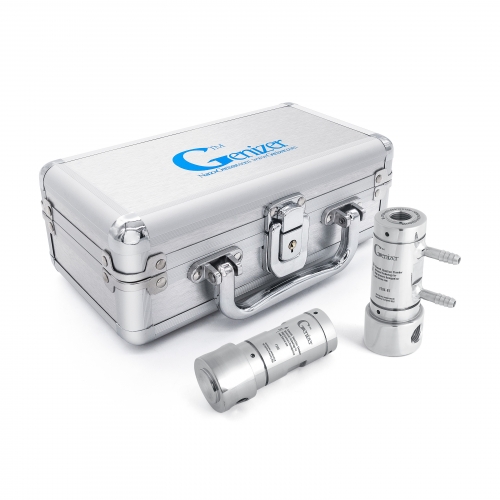

Mixing Diamond Interaction Chamber

Mixing Diamond Interaction Chamber specially designed for multiple inlet ports.

Description:

Mixing Diamond Interaction Chamber (DIXC) is a chamber specially designed for mixing and homogenizing the sample fluids from two or more inlet ports. The multiple streams will mix homogenously at the diamond mixing chamber where the fluids pass through the fixed micro-channels and experience high shears and strong impacts.

Application:

Nanoemulsion, cell disruption, nanodispersion, deagglomeration, liposome

Performance:

Electro-polishing and inner passivation for pharmaceutical applications
Real-time cooling option to reduce oversized particles
Lower cost and higher quality

Specifications

Description	Mixing diamond interaction chamber
Brand	Genizer with high quality
Compatibility	MixGenizer
Dimensions W × D × H	35mm × 45mm × 85mm
Weight	1 lb (0.5kg)
Cleaning	Flush to clean
Sterilization	Whole unit autoclavable
Pressure Range	20,000 psi; 30,000 psi
Chamber Type Available	Y2F12Y, Y2F20Y, Y2F30Y, Y2F30Y-2, Y2F30Y-3, Y2F30Y-4, Y2F30Y-5, Y2F30Y-6

Features

Chamber Type	Mixing diamond interaction chamber: Y2F12Y, Y2F20Y, Y2F30Y, Y2F30Y-2, Y2F30Y-3, Y2F30Y-4, Y2F30Y-5, Y2F30Y-6
Max. Pressure	30,000 psi
Product Material	316L stainless steel, diamond
Polishing Condition	Electro-polish and passivation for pharmaceuticals
Warranty	1 year against any manufacturing defects

Option Features
Chamber Type	Mixing diamond interaction chamber: Y2F12Y-RT, Y2F20Y-RT, Y2F30Y-RT, Y2F30Y-2-RT, Y2F30Y-3-RT, Y2F30Y-4-RT, Y2F30Y-5-RT, Y2F30Y-6-RT
Customer Made	Customized laser mark, dimensions and fittings
Max. Pressure	45,000 psi
Product Material	Titanium (resistant to strong acid and base)
Product Cooling	Real-time cooling on chamber

How to Use

1) Keep 2-3 turns of thread be visible on the end of the tubing

2) For maximizing the stability of the nanosize or bioactivity, please select RT chambers

FAQs and Tips

Is this compatible with Microfluidizer?
All the chambers are compatible with any type of Microfluidizer.

What is the material of the chambers?
All chambers are diamond interaction chambers instead of ceramic.

What if the chambers are blocking?
By flow reversing the chamber, the blocking can be resolved. In addition, Genizer’s high-pressure homogenizers have a unique anti-blocking system that can minimize most of the blocking of the chambers.

How do you confirm the chamber’s connection size?
For those Y-Type Diamond Interaction Chambers with female openings, its tubing connection size could be 1/4″ or 1/8″.
Below is a drawing showing DIXC’s female opening details corresponding with its tubing size:

For those Y-Type Diamond Interaction Chambers with male connections, its tubing connection size could be 9/16″ or 3/8″.
Below is a drawing showing DIXC’s male connection details corresponding with its tubing size:
