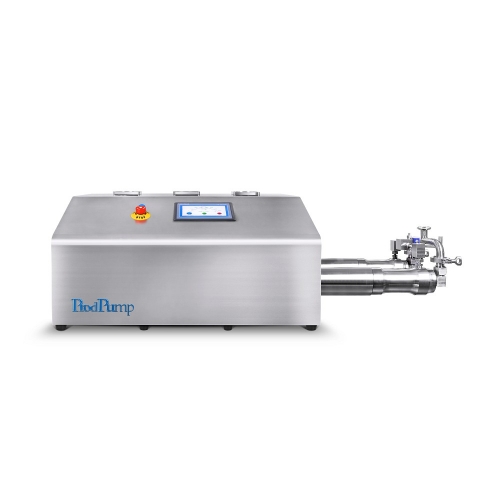

ProdGenizer (Dual Pump)
Production Scale High Pressure Homogenizer with Dual Pump for continuous pressure up to 45,000 psi
Description:
Production Scale High Pressure Homogenizer with Dual Pump for continuous pressure up to 30,000 psi
Application:
Nanodispersions, nanoemulsions and nanotube, graphene,
Cell disruption,
Micro/nanoencapsulation in polymers, liposomes and oils,
Solid dispersion and suspension, deagglomeration
Cell disruption,
Micro/nanoencapsulation in polymers, liposomes and oils,
Solid dispersion and suspension, deagglomeration
Performance:
Energy efficient, 1/2 energy loss of the most homogenizers
Small (integrated design delivers the light weight and small dimensions)
Smart (programming control systems confer diligent functions)
Silent (noiseless performance with high energy efficiency)
Strong (60L/hr at 20,000 psi)
CE compliant and RoHs compliant
Small (integrated design delivers the light weight and small dimensions)
Smart (programming control systems confer diligent functions)
Silent (noiseless performance with high energy efficiency)
Strong (60L/hr at 20,000 psi)
CE compliant and RoHs compliant
Specifications
| Catalog No. | ProdGenizer-5k | ProdGenizer-10k | ProdGenizer-15k | ProdGenizer-20k | ProdGenizer-30k | |
| Flow rate | 120L/hr | 90L/hr | 80L/hr | 60L/hr | 40L/hr | |
| Min. Sample | 200mL | 200mL | 100mL | 100mL | 100mL | |
| Max. Pressure | 5,000psi | 10,000psi | 15,000psi | 20,000psi | 30,000psi | |
| Dimensions(cm) | 160 × 80 × 140 | 160 × 80 × 140 | 160 × 80 × 140 | 160 × 80 × 140 | 160 × 80 × 140 | |
| Weight(kg) | 350 | 350 | 350 | 350 | 350 | |
| Max. Temp. | 80ºC (176ºF) | |||||
| Power | 380V/440V | |||||
| Cleaning | Flush to clean/CIP/SIP | |||||
| Application | Nano emulsion, fat emulsion, liposome, cell disruption, nano dispersion, deagglomeration | |||||
| Features | Dual pump for continuous pressure, digital display of pressure | |||||
Features
| Parts | Y-type diamond interaction chamber with cooling option | |||||
| Control System | High pressure programming control systems: touch screen, speed control, auto stop control by volume, time, pressure or temperature, settable volume control as low as 100 mL, display of flow rate and time, overload protection | |||||
| Pressure Gauge | Electric | |||||
| Inlet Type | Tri- clamp or luer | |||||
| Outlet Type | Tri- clamp or luer | |||||
| Inlet Reservoir | 2L SUS316 cylinder | |||||
| Product Material | 316L stainless steel, tungsten carbide, viton, teflon | |||||
| Material Standard | Sanitary grade, FDA, GMP | |||||
| Warranty | 1 year against any manufacturing defects | |||||
| Option Features | ||||||
| Parts | High pressure extruders, homogenizing valves, heat exchanger | |||||
| Control System | Tradition mechanical control: speed, start, stop controls; FDA 21CFR Compliance; Explosion-Proof | |||||
| Detector | Pressure gauge, pressure transducer, temperature sensor | |||||
| Outlet Type | Tri- clamp or luer | |||||
| Inlet Reservoir | 1L, 2L Cylinder or Online; 1″ or 2″ Tri-Clamp | |||||
| Outlet Reservoir | 1L, 2L Cylinder or Online; 1″ or 2″ Tri-Clamp | |||||
| Cylinder | Titanium high pressure cylinder (resistant to strong acid and base) | |||||
