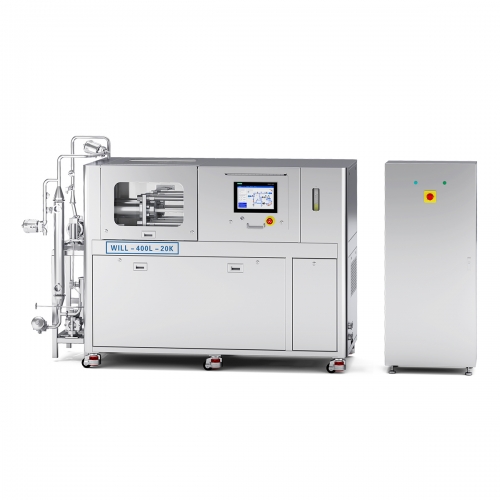

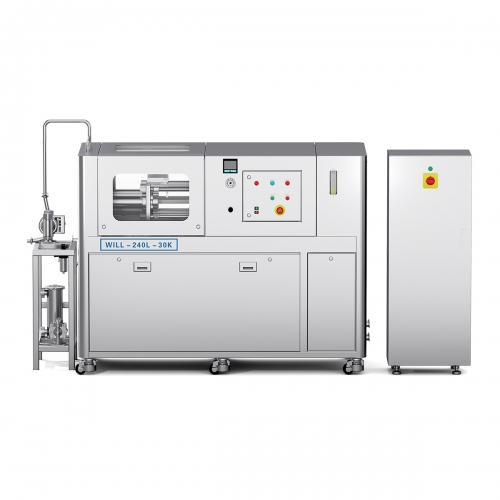

Will series high-pressure microjet homogenization system

WILL Series Microjet High-Pressure Homogenization System – engineered for pilot and large-scale production, built with sanitary-grade 316 stainless steel, ceramics, and PTFE to ensure clean and safe processing.

Description:

WILL Series Microjet High-Pressure Homogenization System – engineered for pilot and large-scale production, built with sanitarygrade 316 stainless steel, ceramics, and PTFE to ensure clean and safe processing. Operating up to 30,000 psi, it delivers powerful, efficient homogenization through advanced interaction chamber technology, achieving optimal results in a single pass. Supporting both continuous and batch modes, it ensures consistent, scalable performance from R&D to full production – a reliable, high-efficiency

Application:

Nanodispersions, nanoemulsions and nanotube, graphene,
Cell disruption,
Micro/nanoencapsulation in polymers, liposomes and oils,
Solid dispersion and suspension, deagglomeration

Performance:

Pressurized Feeding: Optimized feeding for high-viscosity materials.
Smart Backflushing: Self-cleaning without disassembly.
Compliance Assurance: Audit trail, e-signature & user control.
Exceptional Stability: Premium parts for intensive runs.
Process Advantage: Consistent from lab to production.

Specifications

Type	WILL-60L-30K	WILL-120L-30K	WILL-240L-30K	WILL-500L-30K
Flow Rate	60 L/h	120 L/h	240 L/h	500 L/h
Min.Sample Volume	1L	2L	4L	8L
Max.Pressure	30,000 psi	30,000 psi	30,000 psi	30,000 psi
Total Weight	~800 kg	~1,000 kg	~1,300 kg	~2,100kg
Core Components	Y type+Z type multi-slotted diamond interaction chambers
Power Supply	380~480V 11.5kw	380~480V 18.5kw	380~480V 37kw	380~480V 75kw
Plunger Pumps	Single	Single	Dual	Dual
Requirements	Max. Temperature: 90°C, Max. Viscosity: 100,000 cP
