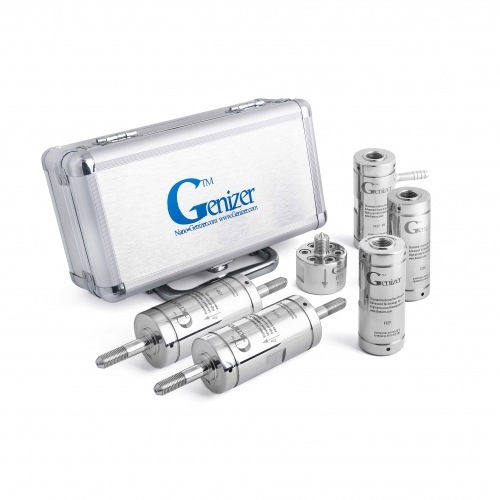

Y-Type Diamond Interaction Chamber

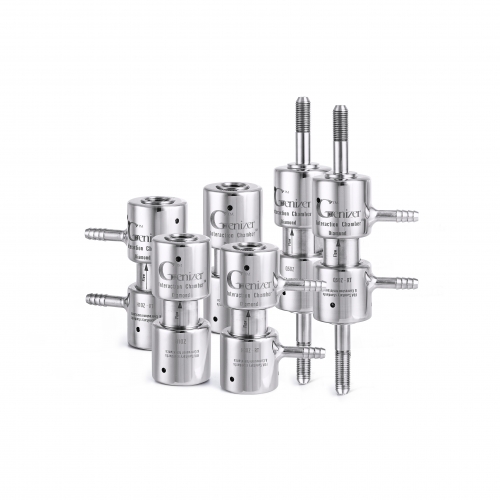

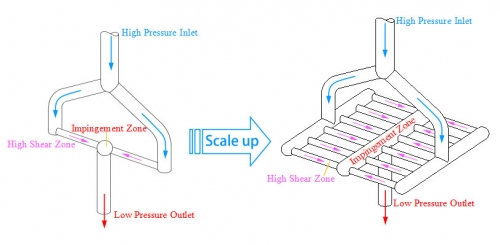

Y-Type Diamond Interaction Chamber (DIXC) is used to produce uniform nanoparticles in a high pressure homogenizer. The fixed geometry within the Y-Type DIXC is intended to create a uniform processing profile so that all materials will be processed with equal disruptive forces. Single-slotted interaction chambers have a single microchannel and are ideal choices for small batch research, while the multi-slotted interaction chamber comprises multiple microchannels in parallel, which can be used at industrial scales, by increasing the flow rate through the DIXC but with equal processing forces.

Application:

Nanoemulsion, cell disruption, nanodispersion, deagglomeration, liposome

Performance:

Full replacement for the chamber of Microfluidizer processors
Electro-polishing and inner passivation for pharmaceutical applications
Real-time cooling option to reduce oversized particles
Lower cost and higher quality

Specifications

Description	Y-type diamond interaction chamber single-slotted, multi-slotted
Brand	Genizer^TM with high quality
Compatibility with Microfluidizer, Avestin EmulsiFlexs, PSI	Single-slotted: M-110Y, M-110P, M-110L, M-110S and M-110EH, PSI-20, adapt to Avestin EmusiFlxe-C3 Multi-slotted: M-7115, M-7125, M-7250, M210, M610, PSI-40
Dimensions W × D × H	35mm × 35mm × 85mm (single-slotted) 45mm × 45mm × 200mm (multi-slotted) 95mm × 95mm × 300mm (9/16″ F→9/16″ M multi-slotted)
Weight	1 lbs. (0.5kg) (single-slotted) 3 lbs. (1.5kg) (multi-slotted) 15 lbs. (7.0kg) (M610)
Cleaning	Flush to clean
Sterilization	Whole unit autoclavable
Pressure Range	20,000 psi; 30,000 psi; 45,000 psi

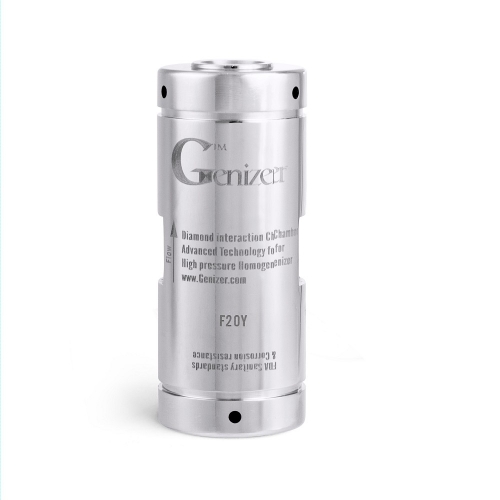

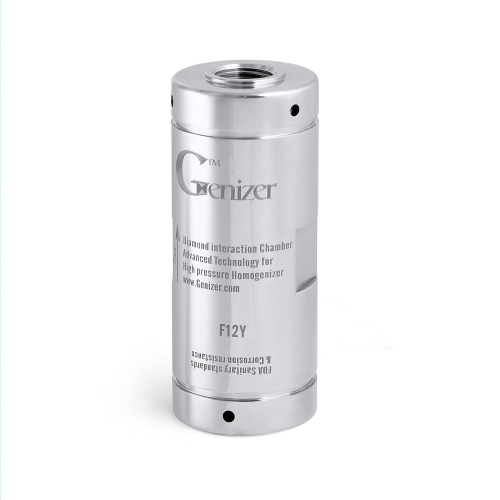

Chamber Type Available	Single-slotted: F12Y, F20Y and static homogenizing valve Multi-slotted: F12Y-4, F12Y-5, F12Y-6, F12Y-7, F20Y-2, F20Y-4, F20Y-6, F20Y-7, F20Y-12, F20Y-13, F20-Y-17

Features

Standard Features

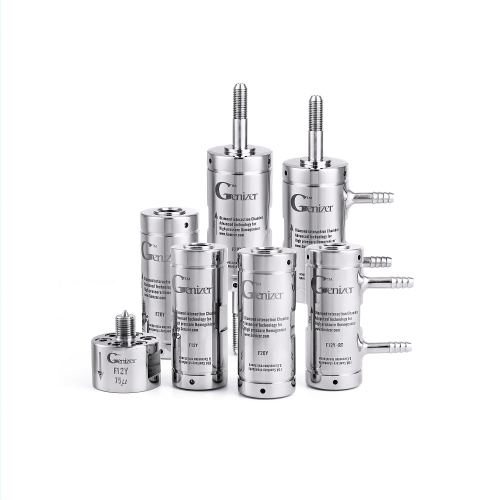

Chamber Type	Y-type diamond interaction chamber: F12Y, F20Y, N40Y, J30Y, J20Y for M210, F30Y, H230Y, F20Y-12, F20Y-13, F20-Y-14 for M610
Max. Pressure	30,000 psi
Product Material	316L stainless steel, diamond
Polishing Condition	Electro-polish and passivation for pharmaceuticals
Warranty	1 year against any manufacturing defects

Option Features
Chamber Type	Z-type diamond interaction chamber: H10Z, G10Z, H30Z, H210Z, H230Z, Q50Z, T50Z, T60Z, APM diamond auxiliary processing modules (APM)
Customer Made	Customized laser mark, dimensions and fittings
Max. Pressure	45,000 psi
Product Material	Titanium (resistant to strong acid and base)
Product Cooling	Real time cooling on chamber

How to Use

1) Keep 2-3 turns of thread be visible on the end of the tubing

High Pressure Fitting

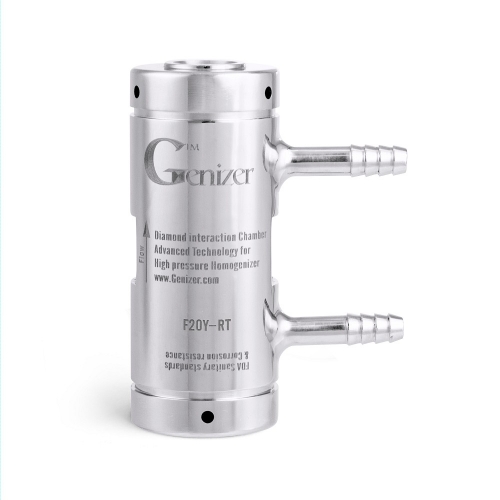

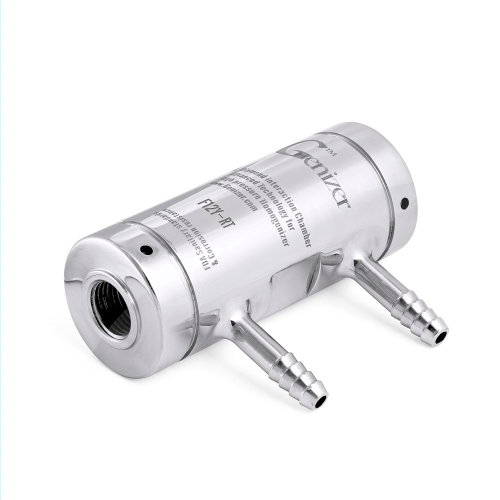

2) For maximizing the stability of the nanosize or bioactivity, please select RT chambers

FAQs and Tips

Is this compatible with Microfluidizer?
All the chambers are compatible with any type of Microfluidizer.

What is the material of the chambers?
All chambers are diamond interaction chambers instead of ceramic.

What if the chambers are blocking?
By flow reversing the chamber, the blocking can be resolved. In addition, Genizer’s high-pressure homogenizers have a unique anti-blocking system that can minimize most of the blocking of the chambers.

How do you confirm the chamber’s connection size?
For those Y-Type Diamond Interaction Chambers with female openings, its tubing connection size could be 1/4″ or 1/8″.
Below is a drawing showing DIXC’s female opening details corresponding with its tubing size:

For those Y-Type Diamond Interaction Chambers with male connections, its tubing connection size could be 9/16″ or 3/8″.
Below is a drawing showing DIXC’s male connection details corresponding with its tubing size:
