Video Extensometers (VEM 100 Series)

It is designed to measure higher levels of strain (>10%) in tensile, compression, shear and flexural modes.

The units are fully integrated with the testing machine and results-reporting software, supporting multiple gauge length click and drag placements, strain rate control and real-time results during and throughout the test.

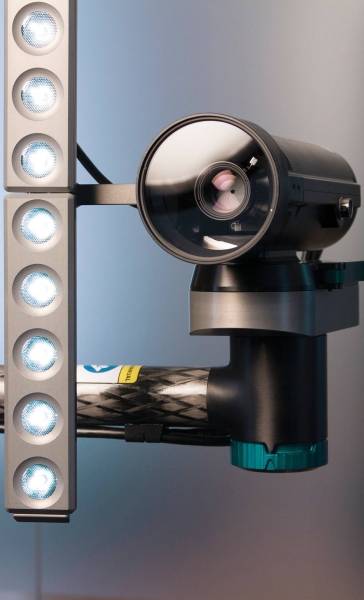

The VEM 100 series is directly compatible with all Tinius Olsen testing machine frames. It is mounted using a stabilised carbon fibre arm with built-in X, Y and Z fine positioning adjustment for optimum measuring performance.

The unit can be mounted at the front or rear of a testing machine, left or right in support of operator comfort and efficiency of use. The extensometer on its mounting arm can be quickly moved away from the test area, ensuring full operator access for specimen loading and grip or accessory changes, then equally quickly swung back into position, locating precisely using the magnetic homing position – simple, precise and quick.

The built-in lighting strip ensures repeatability in tests irrespective of lab conditions yet requires no special light sources or red colours, is easily controlled by the user adjusting intensity as required to ensure a stable light environment.

Key Features:

  •  Non-contacting video extensometer solution
  • One extensometer measures in tension, compression, flexural, shear modes
  • No risk of damage due to violent specimen breaks
  • Capable of measuring up to 1000% strain
  • Supports quick gauge length change 10mm, 25mm, 50mm, 100mm, 200mm
  • Provides a permanent record for recall of the test in video format with full resolution embedded strain data
  • Meets the requirements of ISO 9513 class 0.5, ASTM E83 class B1 and GB/T 12160 class 0.5
