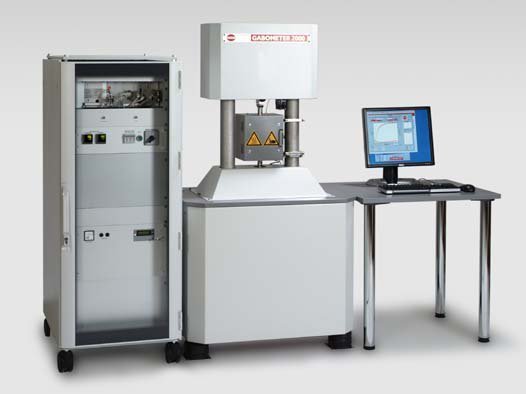

GABOMETER – Intelligent Universal Flexometer

Accurate measurements of Heat Build-up or Blow out processes and the determination of the thermal set can be realised by our GABOMETER^® system – a development based on the established Goodrich Flexometer.

Both, force and elongation controlled tests can be carried out with this modern type of Flexometer. The GABOMETER^® is suitable to improve the thermal dissipation and the durability of semi-finished tire components, dampers or absorbers.

Additionally, the new generation provides the measurement of the material stiffness (E modulus, tan δ – option) and damping.

Key Benefits:

• Heat build-up and blow out tests according to Goodrich (DIN 53 533, ASTM D 623, ISO 4666/3,ISO 4666/4, BS 903 part A50 and JIS K 6265)
• Goodrich flexometer tests
• Static: strain or stress controlled load mode available
• Dynamic: strain or stress controlled load mode available
• Automatic Sample Changer (ASC) for fully automatic testing (24h) (option)
• Simultaneous measurement of the visco-elastic properties (option)
• Simultaneous measurement of the visco-elastic properties (option)
• Hysteresis analysis (option)
• Pulse load mode available (option)
