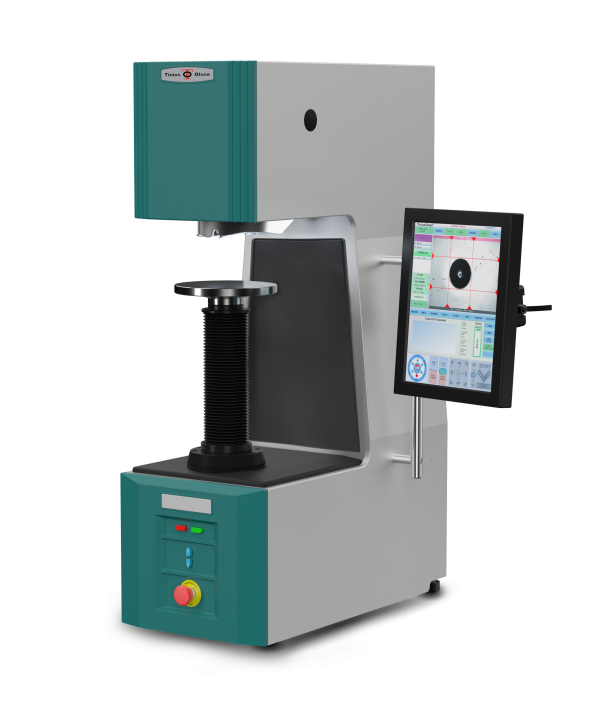

FH 9 Brinell Hardness Tester

The model FH 9 is a Brinell Hardness testing machines is a new generation that uses a unique, load cell based,
closed loop system and integrates a precision optical system with high quality objectives and a digital display.

It integrates a precision optical system with high quality objectives and a digital display, and offers conversion to other hardness scales and online statistics, as well as USB, LAN, W-LAN, RS232 data output. The system controls are managed via a simple-to-use 7.5” full color industrial touch screen, which will also display results and statistics.

Model Details:

• FH-009-0026    62.5-3000kgf        Brinell with scanner
• FH-009-0032    31.25-3000kgf      Brinell

Features & Benefits:

• Load cell, closed loop, force control
• Load range 31.25-3000kgf (306N-29kN)
• Meets or exceeds ISO, ASTM and JIS standards
• Full-color industrial touch screen 7.5” (FH9-26) & 15” (FH9-32)
• Simultaneous conversion to Rockwell, Vickers and Leeb rebound testing
• 6 position motorized turret; 3 indenters, 2 brinell objectives with ring lights and 1 laser positioning system (FH9-32)
• Brinell digital scanner (CCD camera) for automatic indent measurement (FH9-26)
• Horizon high performance PC-based camera indent measuring system. Automatic measurement of the indent on the industrial touch screen. Archive file, handle images and data on the tester or your network
